1PH8137-2FL12-0BA1-Z Y84

The package contains: 1 piece

Manufacturer: SIEMENS

5,507.25 €
5510,– €
Available on stock
Delivery time: within 2 days.
Product description

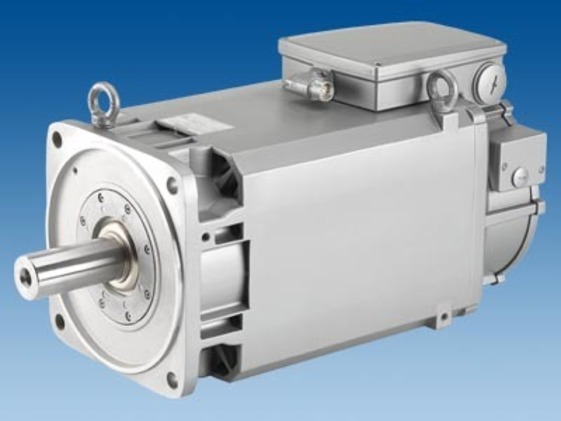

SIMOTICS M Compact synchronous motor 2500rpm, 48.4kW 185Nm, 83A, 371V 2800rpm, 53.4kW 182Nm, 82A, 415 V 3000rpm, 56.9kW 181Nm, 81A, 449V forced ventilation; direction of air flow NDE--> DE; Degree of protection IP55 Absolute encoder 22-bit Single-turn and 12-bit multi-turn (encoder AM22DQ) with DRIVE-CLiQ interface DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END Y84: CUSTOMER INSTRUCTIONS ON THE RATING PLATE (MAX. 30 SIGNS)
Expand description
SEO parameters
Product status
sealed
Product code
1PH8137-2FL12-0BA1-Z Y84
